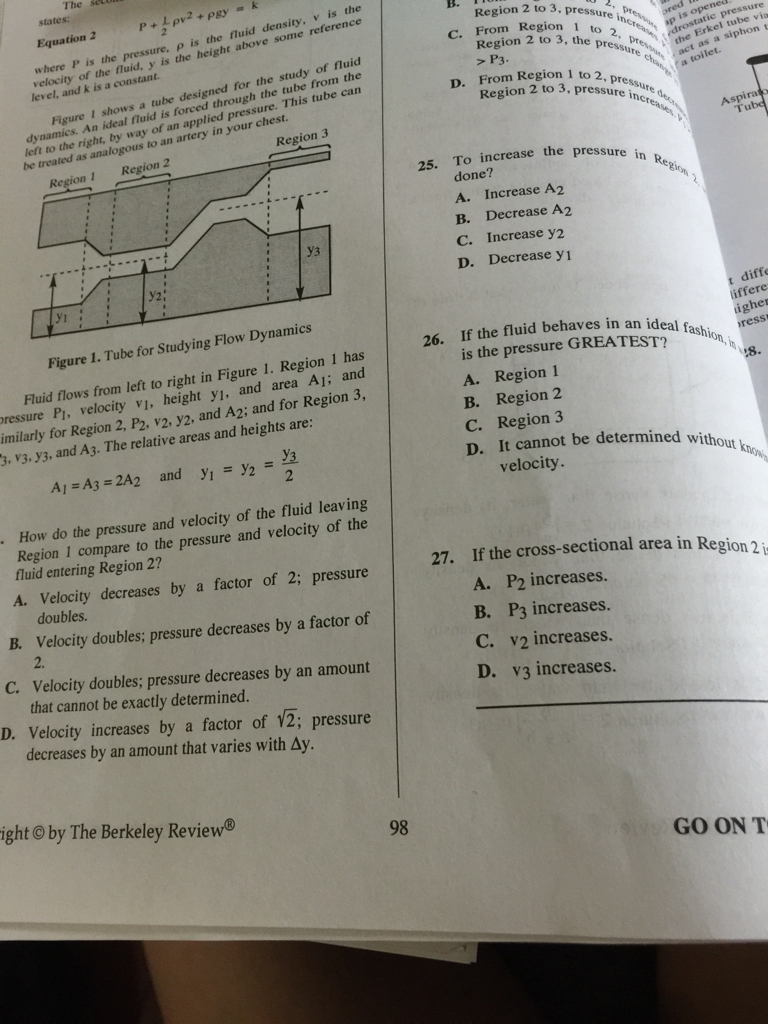

Question 26 Bernoulli equations
- Thread starter dahmsom
- Start date
- Joined
- Aug 27, 2014
- Messages
- 132
- Reaction score
- 18
@ElApacheNess yes
- Joined
- Feb 26, 2012
- Messages
- 1,992
- Reaction score
- 2,157
Except the problem states y1 = y2.
What is a constant is not the velocity, but rather the flow rate = volume / second = area x velocity. Otherwise, every second that goes by, material would need to be created (or destroyed).
The fluid must be moving faster in section 2 because it is a smaller pipe. Think about when you put your thumb over the end of a hose... smaller hole means faster water.
Bernoulli says faster things have less pressure. Because they spend more of their energy moving in a straight line they have less energy to be beating on the sides of the container (which is what pressure is).
What is a constant is not the velocity, but rather the flow rate = volume / second = area x velocity. Otherwise, every second that goes by, material would need to be created (or destroyed).
The fluid must be moving faster in section 2 because it is a smaller pipe. Think about when you put your thumb over the end of a hose... smaller hole means faster water.
Bernoulli says faster things have less pressure. Because they spend more of their energy moving in a straight line they have less energy to be beating on the sides of the container (which is what pressure is).
- Joined
- Mar 23, 2014
- Messages
- 2,127
- Reaction score
- 2,276
Bernoulli's eqn describes the conservation of energy for fluids. The 3 components of energy to think about are:
Pressure = P1, P2, P3 (depending on the region)
Potential energy = Density * g (gravity) * y (height)
Kinetic Energy = 1/2 * Density * v^2
Fluid flows through the pipe, and though the cross-sectional area of the pipe or height of the pipe changes in different regions, the overall energy of the fluid remains constant. Also remember to use the continuity equation a1* v1 = a2 * v2 to compare how velocity changes as cross sectional area changes between regions.
For example, when comparing region 1 to region 2: Let P1 = Pressure of region 1, D1 = Density, v1 = velocity, A1 = area, etc.
P1 + D1 * g * y1 + 1/2 * D1 * v1^2 = P2 + D2 * g * y2 + 1/2 * D2 * v2^2
y1 = y2, so the Potential energy is the same in these regions.
A1 > A2, so v2 > v1 for the continuity equation to hold.
Using bernoulli's eqn above, since v2 > v1, P1 > P2 for energy to be conserved. region 1 and region 2 have the same potential energy. Region 2 has higher kinetic energy, so region 1 must have higher Pressure.
Now comparing region 1 to region 3 follows the same logic, except now A1 = A3 so v1 = v3 (continuity equation).
y3 > y1 (region 3 has more potential energy), so P1 > P3.
Bernoulli's eqn and the continuity eqn are all you need to compare fluid flow in different regions. Hope this helps!
Pressure = P1, P2, P3 (depending on the region)
Potential energy = Density * g (gravity) * y (height)
Kinetic Energy = 1/2 * Density * v^2
Fluid flows through the pipe, and though the cross-sectional area of the pipe or height of the pipe changes in different regions, the overall energy of the fluid remains constant. Also remember to use the continuity equation a1* v1 = a2 * v2 to compare how velocity changes as cross sectional area changes between regions.
For example, when comparing region 1 to region 2: Let P1 = Pressure of region 1, D1 = Density, v1 = velocity, A1 = area, etc.
P1 + D1 * g * y1 + 1/2 * D1 * v1^2 = P2 + D2 * g * y2 + 1/2 * D2 * v2^2
y1 = y2, so the Potential energy is the same in these regions.
A1 > A2, so v2 > v1 for the continuity equation to hold.
Using bernoulli's eqn above, since v2 > v1, P1 > P2 for energy to be conserved. region 1 and region 2 have the same potential energy. Region 2 has higher kinetic energy, so region 1 must have higher Pressure.
Now comparing region 1 to region 3 follows the same logic, except now A1 = A3 so v1 = v3 (continuity equation).
y3 > y1 (region 3 has more potential energy), so P1 > P3.
Bernoulli's eqn and the continuity eqn are all you need to compare fluid flow in different regions. Hope this helps!
