Keyhole question on a front view

Started by 510586
Get help with your application

Use all the free resources available to you from SDN: articles, guides, expert advising, forums discussions, and school research.

510586

Full Member
7+ Year Member

Attachments

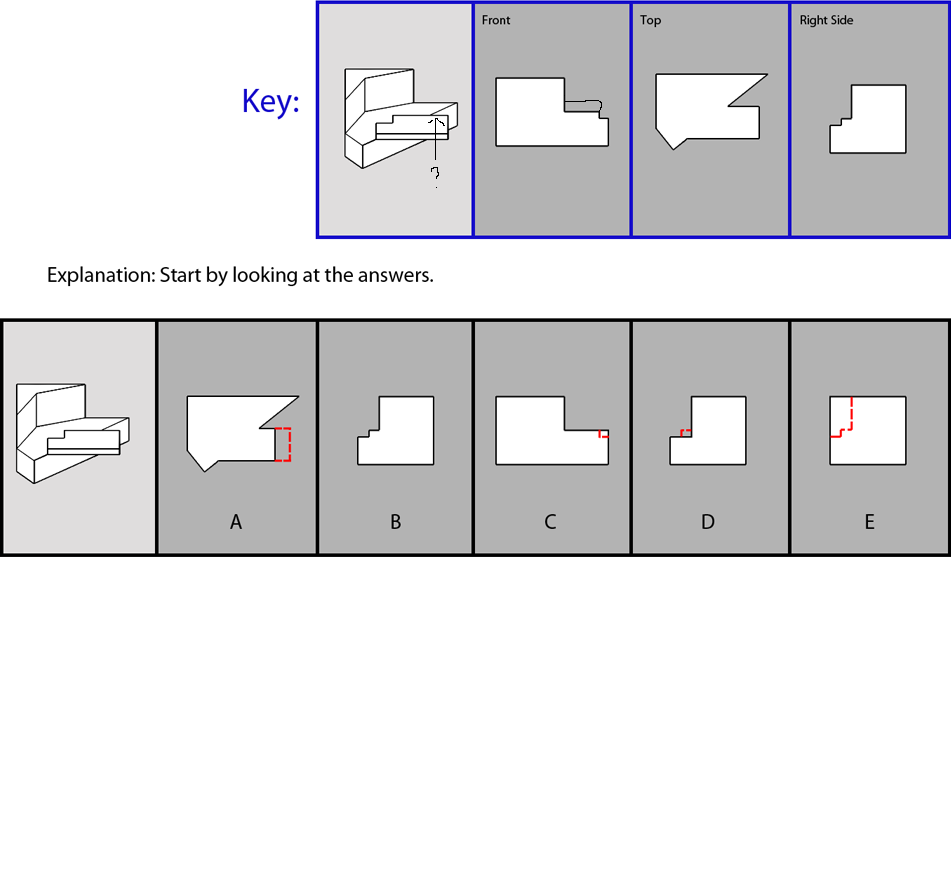

  • keyhole question what I expected.png
    keyhole question what I expected.png
    40.7 KB · Views: 179

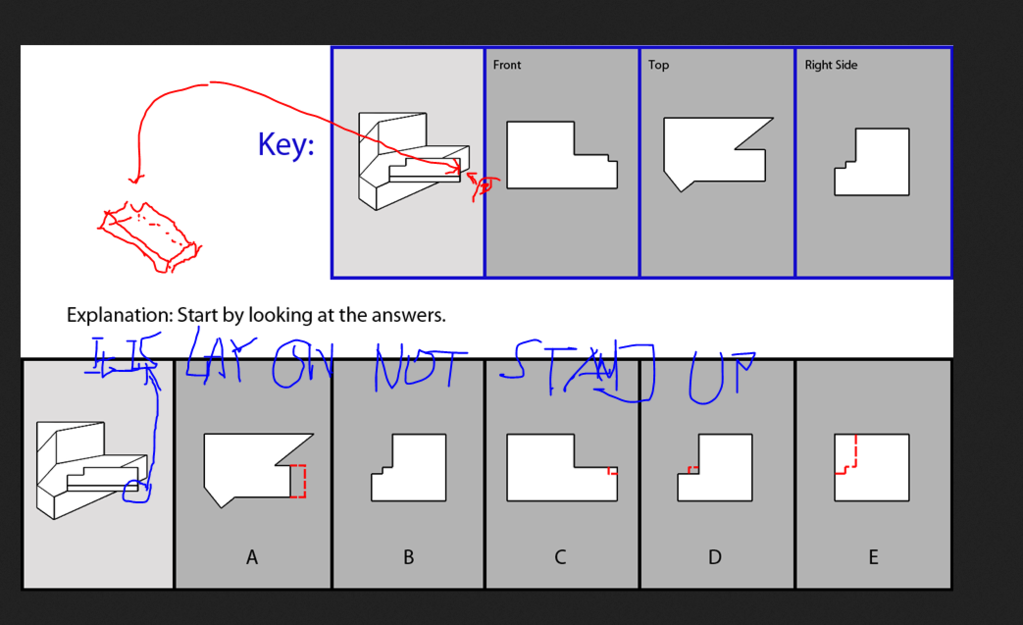

  • keyhole question 1.png
    keyhole question 1.png
    34.6 KB · Views: 175

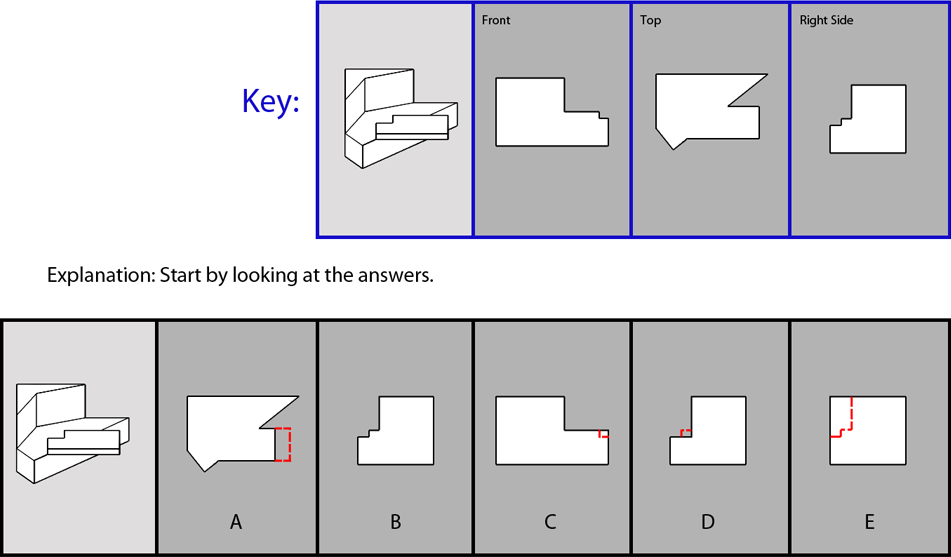

For KH, it is very important to compare the relative length . You can compare the three length so you will get why the 2nd extension in the front view short.

I understand the length but the height is tripping me up. The part jutting up in the picture looks much taller than the correct front in view.
