How can you tell if Newman Projection is Staggered or Eclipsed?
Basically, how would you draw projections from the given structure?

Members don't see this ad.


Attachments

  • Screen Shot 2015-07-29 at 3.57.21 PM.png
    Screen Shot 2015-07-29 at 3.57.21 PM.png
    201.3 KB · Views: 67
You can see them by staring into the carbon-carbon bond.

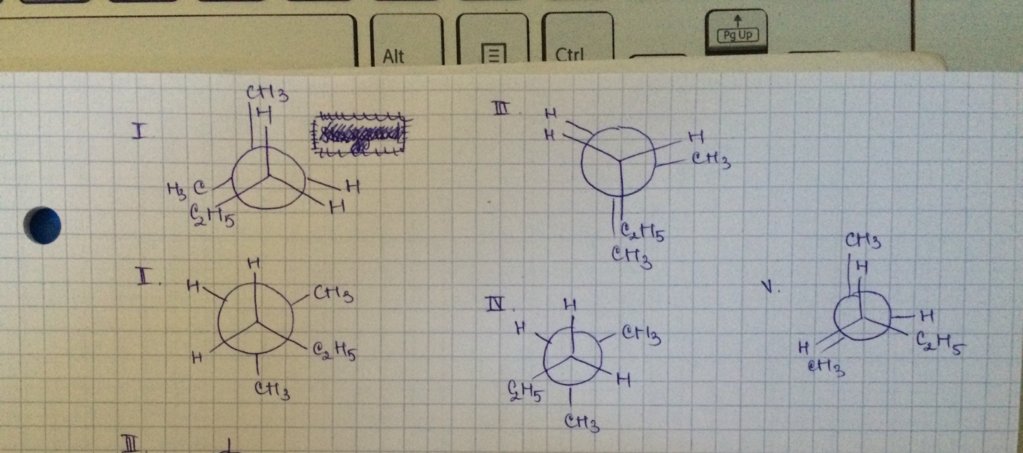

Or you can draw them out, draw a circle with a dot in the middle. Whatever in the front, you put in front of the circle. What ever in the back, with the position like it is, you draw it behind the circle. Like the picture.
Then you can see which one is eclipsed and which one is staggered.
