AAMC FL 3, C/P Section Q7
- Thread starter mariposas905
- Start date
- Joined
- Jan 19, 2017
- Messages
- 117
- Reaction score
- 45
- Points
- 2,651
- Pre-Medical
Hi, Mariposas905--

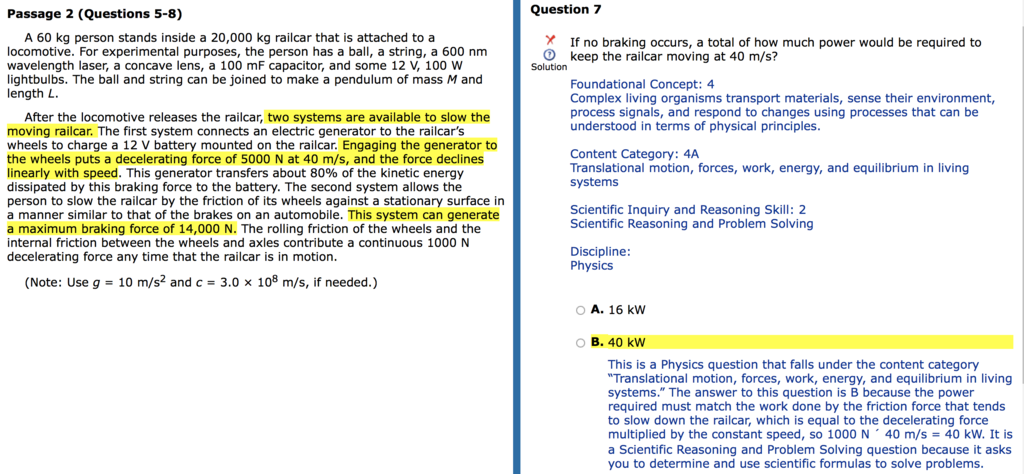

The question starts out by saying, "If no braking occurs". Therefore, the generator was not engaged (no 5000 N at 40 m/s was engaged) and no stationary surface was added to the wheels to decelerate. If no braking occurs, then we have no deceleration (constant velocity of 40 m/s). So we must look at the free body diagram: 1000 N of force due to rolling friction/internal friction must be balanced by the power needed to maintain constant velocity. So the power output must be 1000 N x 40 m/s.
I hope that helps.
Happy Studying!
The question starts out by saying, "If no braking occurs". Therefore, the generator was not engaged (no 5000 N at 40 m/s was engaged) and no stationary surface was added to the wheels to decelerate. If no braking occurs, then we have no deceleration (constant velocity of 40 m/s). So we must look at the free body diagram: 1000 N of force due to rolling friction/internal friction must be balanced by the power needed to maintain constant velocity. So the power output must be 1000 N x 40 m/s.
I hope that helps.
Happy Studying!
