Rapid infusion

Discussion in 'Emergency Medicine' started by KGflyboy, Feb 11, 2019.

  1. KGflyboy

    5+ Year Member

    Joined:
    Dec 28, 2012
    Messages:
    271
    Likes Received:
    121

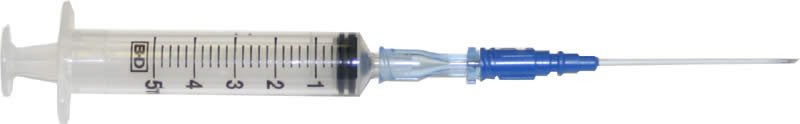

    Which do you think would infuse blood products faster? A standard 18 guage in the antecubital fossa, or the 18 guage over the needle introducer catheter found in a central line kit placed in the femoral vein? Or would it be the same? Of course a Cordis or other rapid infusion catheter would be ideal, but I'm curious if there is any difference between the two options above. Angiocath.jpeg

  2. gamerEMdoc

    gamerEMdoc Associate PD; EM Clerkship Director
    Physician Faculty Gold Donor Verified Account 2+ Year Member

    Joined:
    Feb 10, 2016
    Messages:
    1,645
    Likes Received:
    2,916
    Status:
    Attending Physician
    Should be the same I'd imagine. Flow is going to be determined by the width and length of the catheter. The fatter the catheter, and the shorter the catheter, the faster the flow.

    In more scientific terms, it's Poiseuille's Law.

    So if the catheters are the same diameter (they are if they are both 18g), the shorter of the two should infuse the fastest assuming the other factors that dictate flow (fluid viscosity, pressure gradient) are the same.

  3. DrDrummer

    DrDrummer ruleoutbadness.com
    10+ Year Member

    Joined:
    Jan 2, 2005
    Messages:
    408
    Likes Received:
    106
    Status:
    Resident [Any Field]
    gro2001 and 24GaugeEJ like this.
  4. southerndoc

    southerndoc life is good
    Physician Faculty Moderator Emeritus Lifetime Donor Verified Expert Verified Account 10+ Year Member

    Joined:
    Jun 6, 2002
    Messages:
    11,794
    Likes Received:
    708
    Status:
    Attending Physician
    I was trying to upload a chart from a lecture I gave, but I cannot do it without going through 30 steps to set up an account to host the image file.

    An 18 g 1.25" catheter will infuse about 90-100 mL/min via gravity for crystalloid. pRBC's will be less. With a Level I infuser, you can increase this to 205 mL/min. An 8.5 Fr Cordis will infuse 674 mL/min via gravity and 857 mL/min via a Level I.

    The length of the catheter affects flow rates exponentionally. An 18 g 1.25" catheter will have more flow than a 16 g 1.5" catheter usually. This is why central lines have such limited flow rates.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    illegallysmooth likes this.
  5. OP
    OP
    KGflyboy

    5+ Year Member

    Joined:
    Dec 28, 2012
    Messages:
    271
    Likes Received:
    121
    Yeah that's what I was thinking. I've seen several charts comparing the rates of different access catheters. Suppose both catheters were the exact same size. Put one in a small vein and one in the femoral vein. Are they going to infuse at the same rate? I think that probably would, unless you were trying to infuse into the tiniest of brings in one's hand where the vein diameter might me small enough to limit flow during a rapid infusion. But I don't know if this is actually true. I couldn't find data on this.

    #5 KGflyboy, Feb 12, 2019
    Last edited: Feb 12, 2019
  6. BoardingDoc

    BoardingDoc Don't worry. I've got my towel.
    Physician 7+ Year Member

    Joined:
    Feb 23, 2010
    Messages:
    1,104
    Likes Received:
    1,558
    Status:
    Attending Physician
    Just use imgur. Drag and drop. No account required.

  7. scummie

    7+ Year Member

    Joined:
    Apr 28, 2009
    Messages:
    670
    Likes Received:
    182
    Status:
    Medical Student
    As one of my old attendings used to say, “Short and fat is where it’s at.” Both in terms of access and body habitus.

    RoyBasch likes this.
  8. Apollyon

    Apollyon Screw the GST
    Physician Lifetime Donor Verified Expert Verified Account 15+ Year Member

    Joined:
    Nov 24, 2002
    Messages:
    19,710
    Likes Received:
    4,333
    Come on, people - @gamerEMdoc gave the crystal clear response, and even nerded it up with Poiseuille's Law.

    I think that that is all you need!

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  9. Groove

    Groove Member
    Physician Lifetime Donor Verified Account 10+ Year Member

    Joined:
    May 3, 2004
    Messages:
    1,440
    Likes Received:
    765
    Status:
    Attending Physician
  10. turkeyjerky

    Physician 10+ Year Member

    Joined:
    Sep 27, 2008
    Messages:
    1,759
    Likes Received:
    142
    Status:
    Resident [Any Field]
    Groove likes this.
  11. Groove

    Groove Member
    Physician Lifetime Donor Verified Account 10+ Year Member

    Joined:
    May 3, 2004
    Messages:
    1,440
    Likes Received:
    765
    Status:
    Attending Physician
    Though I guess if you really wanted to set a record, nothing would probably beat IV tubing inserted in a venous cut down! :laugh:

    Apollyon likes this.
  12. TooMuchResearch

    TooMuchResearch i'm goin' to Kathmandu...
    Lifetime Donor Verified Account 10+ Year Member

    Joined:
    Oct 21, 2008
    Messages:
    4,794
    Likes Received:
    1,170
    Status:
    Resident [Any Field]
    Rapid infuser directly into the heart?

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    Groove likes this.
  13. Druggernaut

    Physician Lifetime Donor Verified Account 10+ Year Member

    Joined:
    Feb 14, 2008
    Messages:
    636
    Likes Received:
    214
    Status:
    Attending Physician
    Had an attending who has infused through a Foley inserted in the heart as part of a thoracotomy. It apparently had a pretty impressive flow rate...

    Groove and Apollyon like this.
  14. TooMuchResearch

    TooMuchResearch i'm goin' to Kathmandu...
    Lifetime Donor Verified Account 10+ Year Member

    Joined:
    Oct 21, 2008
    Messages:
    4,794
    Likes Received:
    1,170
    Status:
    Resident [Any Field]
    I saw it happen with a rapid infuser. Blood products in faster than the nurses could prep the next bag.
    Outcome was poor.
