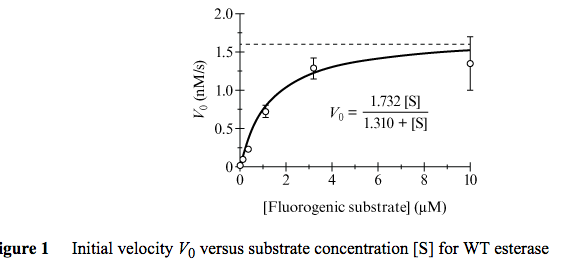

Can't seem to figure out what's going on here. Km = 1/2(Vmax) and from the graph, it looks as though Vmax = 1.6. Why is the answer 1.31?


Attachments

  • Screen Shot 2016-08-05 at 11.17.02 AM.png
    Screen Shot 2016-08-05 at 11.17.02 AM.png
    27 KB · Views: 64
  • Screen Shot 2016-08-05 at 11.16.37 AM.png
    Screen Shot 2016-08-05 at 11.16.37 AM.png
    71.9 KB · Views: 83
Km is the substrate concentration when v = 1/2 vmax.

So it's the substrate concentration, not the vmax velocity.

Km = CONCENTRATION of substrate at 1/2 Vmax. Vmax is roughly 1.5, half of that is roughly 0.75 uM/s. Concentration at that velocity is roughly 1.3

Edit: roughly

Last edited:
You could have also easily gotten the answer by looking at the formula.
v=S*Vmax/Km+S
(S=substrate concentration)

therefore Vmax=1.732 & Km=1.310

If you were in a rush, it might be hard to distinguish between 1.7 and 1.3 on that graph.
