A lot of good ideas here. It seems complicated and requires a lot of skill and effort to make different densities in different areas, and maybe I need a different supplier. I understood better what you’re saying after reviewing this
A few facts about shock absorbing materials for orthoses. / LBG Medical
I didn’t think I was gonna do this, but you seemed interested and open to ideas, so here’s some more food for thought: The study of friction in feet (biotribology) is super complicated, because different fabric types, knit pattern, density of the fabric/material, and moisture affects the coefficient of friction. In feet, we also take into account bony prominences and how there is peak plantar pressures during push off, which could also be thought of as max friction force during push off. Such as bedridden patients who have sacral ulcers are recommended to lay flat as opposed to having the head of the bed elevated to reduce sacral pressure and shear, the same concept can be applied to the plantar metatarsal head, and efforts to limit dorsiflexion should theoretically reduce peak pressure and shear.
Studies on coefficient of friction (COF) of different insole materials and fabrics are confusing because there’s a lot of factors to take into account mentioned above, here’s some of the graphs I’ve found:

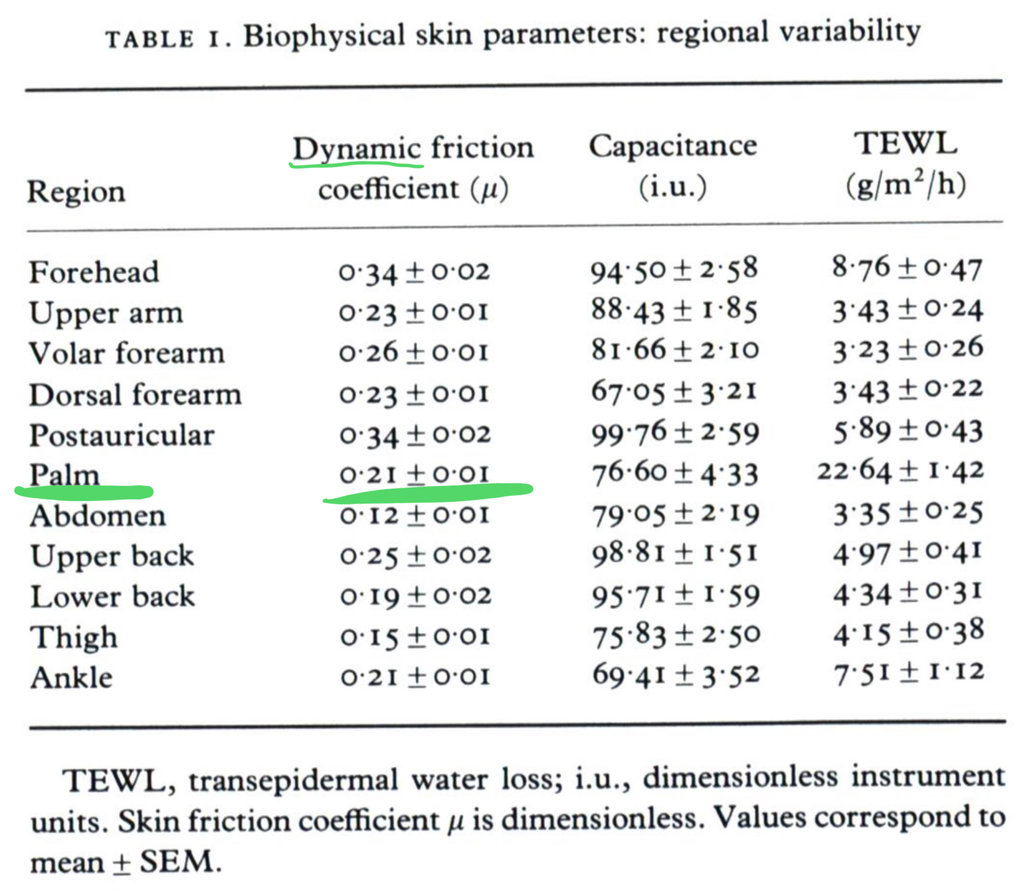

View attachment 225874
The palm of the hand has a dynamic COF of 0.21

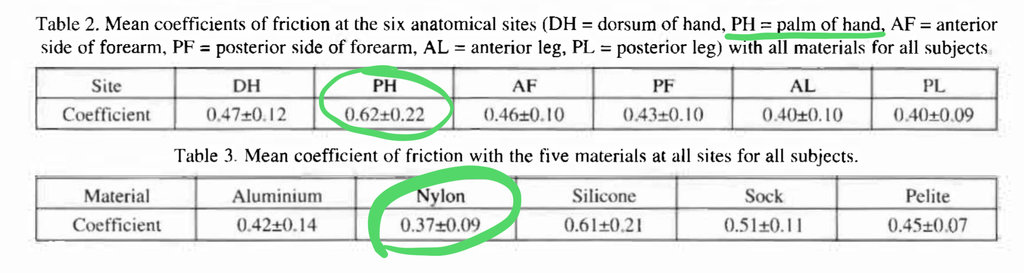

View attachment 225876
However, this other study on I believe static COF of the palm was double that found above at 0.62. Static COF is normally higher than dynamic COF, but we this value may vary between people with different occupations, like the palm of a weightlifter probably has a higher dynamic and static COF than many.

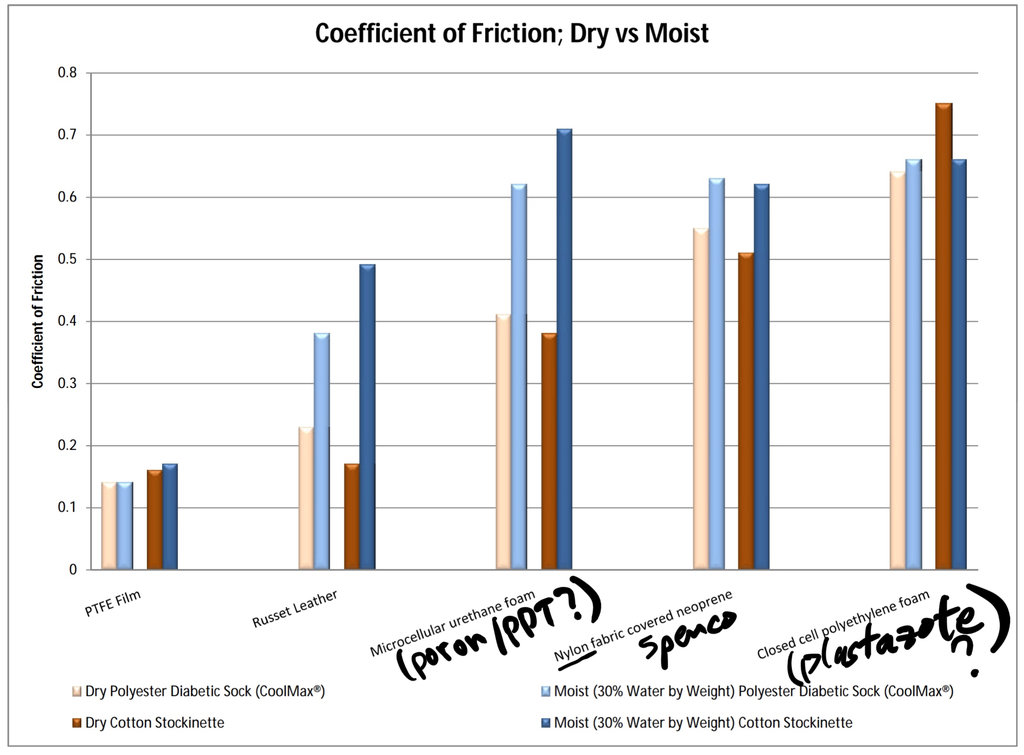

View attachment 225875
This is a biased study published off the website of a company called Tamarack, but its interesting because it shows how moisture increases the COF of most materials (I don’t believe the low COF of the PTFE film, it should be higher such as in the graph below). Notice how the COF of nylon vs skin on the previous graph is 0.37 whereas the COF of this nylon vs sock is around 0.5-0.6.

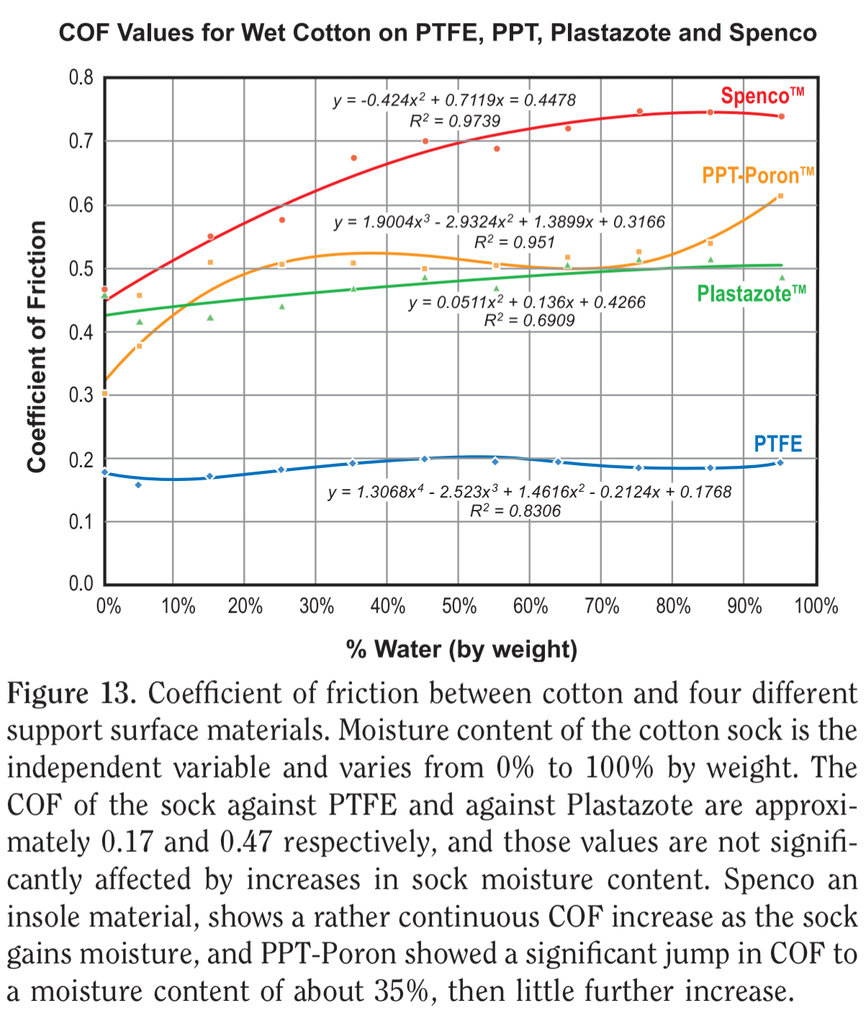

View attachment 225877
Last image, the PTFE film is closer to 0.2 which seems more realistic. It would make sense that plastazote and ppt/poron would not increase by much with moisture because they are closed-cellular structures (correct me if I’m wrong on this one) while Spenco increased by a lot because really the test is measuring the COF of the stretchy nylon fabric top cover. In case you were wondering, the study looked at a few athletes after intense activity and measured sock moisture content to be around 20-30%.
I can’t really draw any conclusions from these graphs other than the fact that there are so many combinations of surfaces and factors that could be tested. And then, there’s clinical tests, which mostly were done before the year 2000 and they were all on athletes, none were on diabetic feet and incidence of ulceration (at least I couldn’t find any, hoping maybe I just missed something). It doesn’t make sense to me why Medicare would pay so much for something so poorly studied.
