Coming soon to a pain clinic near you...
The robotic system allowed for comparable placement of transforaminal epidural injections as a freehand technique by an experienced provider, with additional benefits of improved accuracy and precision.
pubmed.ncbi.nlm.nih.gov
Autonomous Spinal Robotic System for Transforaminal Lumbar Epidural Injections: A Proof of Concept of Study
Adam Margalit 1,
Henry Phalen 2,
Cong Gao 2,
Justin Ma 2,
Krishna V Suresh 1,
Punya Jain 1,
Amirhossein Farvardin 2,
Russell H Taylor 2,
Mehran Armand 2,
Akhil Chattre 1,
Amit Jain 1
Abstract
Study design: Phantom study.
Objective: The aim of our study is to demonstrate in a proof-of-concept model whether the use of a marker less autonomous robotic controlled injection delivery system will increase accuracy in the lumbar spine.

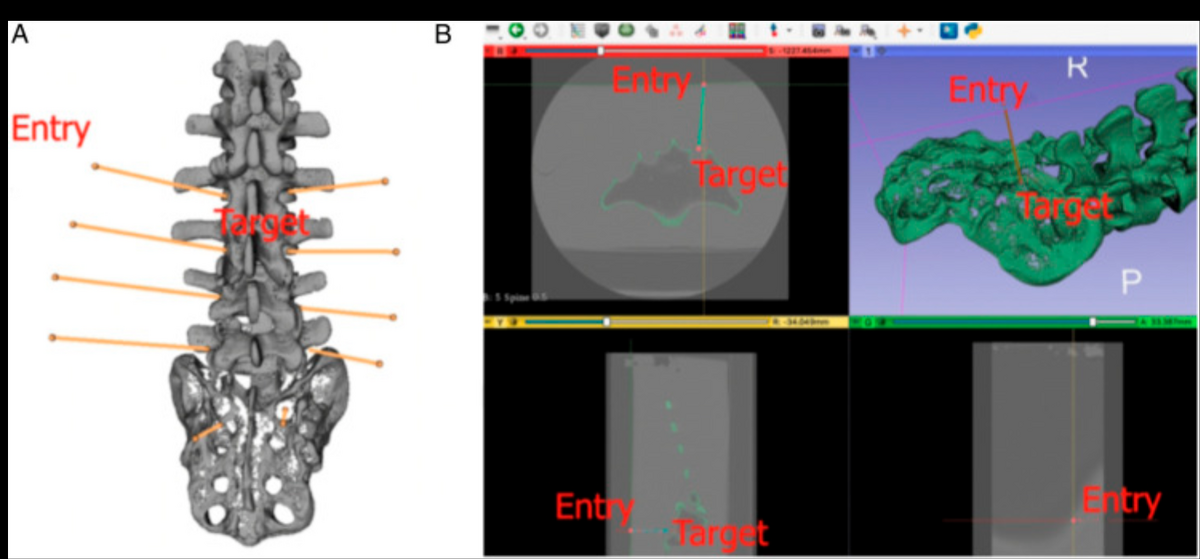

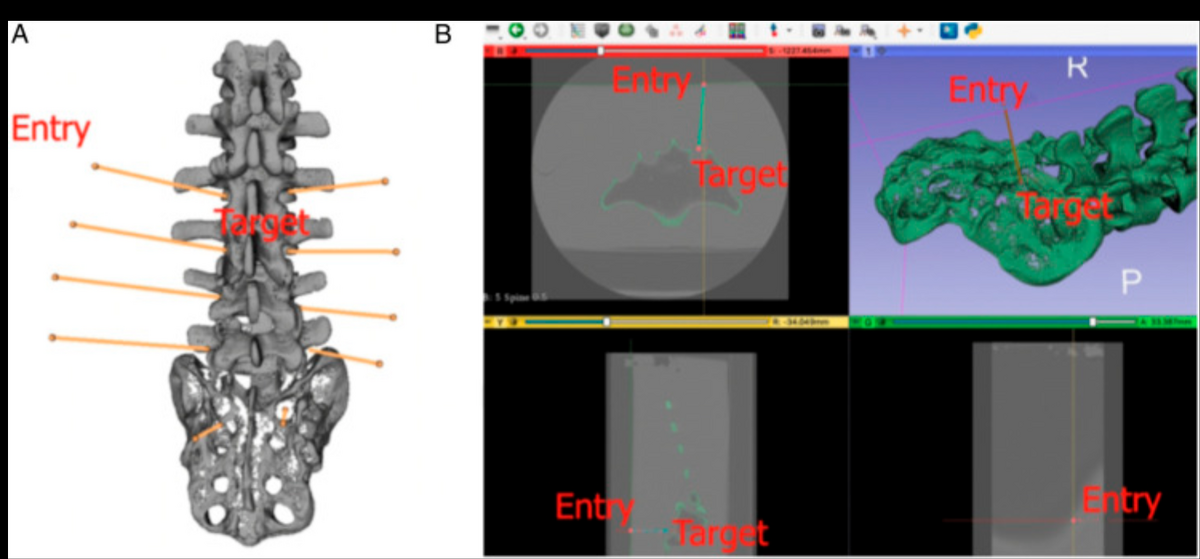

Methods: Ideal transforaminal epidural injection trajectories (bilateral L2/3, L3/4, L4/5, L5/S1 and S1) were planned out on a virtual pre-operative planning software by 1 experienced provider. Twenty transforaminal epidural injections were administered in a lumbar spine phantom model, 10 using a freehand procedure, and 10 using a marker less autonomous spinal robotic system. Procedural accuracy, defined as the difference between pre-operative planning and actual post-operative needle tip distance (mm) and angular orientation (degrees), were assessed between the freehand and robotic procedures.
Results: Procedural accuracy for robotically placed transforaminal epidural injections was significantly higher with the difference in pre- and post-operative needle tip distance being 20.1 (±5.0) mm in the freehand procedure and 11.4 (±3.9) mm in the robotically placed procedure (
P < .001). Needle tip precision for the freehand technique was 15.6 mm (26.3 - 10.7) compared to 10.1 mm (16.3 - 6.1) for the robotic technique. Differences in needle angular orientation deviation were 5.6 (±3.3) degrees in the robotically placed procedure and 12.0 (±4.8) degrees in the freehand procedure (
P = .003).
Conclusion: The robotic system allowed for comparable placement of transforaminal epidural injections as a freehand technique by an experienced provider, with additional benefits of improved accuracy and precision.
Keywords: autonomous surgical robot; interventional radiology; orthopaedic surgery; pain management; robot-assisted surgery; spinal rehabilitation.
View attachment 380355
